Project gallery

Work in progress, and work finished

Project photography is added as jobs complete. Every image names the process, material and type of job, because that is the useful part.

24/6 availabilityEmergency call-outs, day or night
Insured & qualified4.0 GPA welding diploma
Card paymentsPay on completion, on site
Send a photoQuote from the job site

Photographs here come from real work across southeast Nebraska — welds, fabrications, repairs and installations — rather than stock images bought in to fill a page. More are added as jobs are completed and customers give permission.

Waste water repair

Bar screen rake arm and bracket repairs carried out in place at a waste water treatment plant, from fit-up on the table through to welding above the channel.

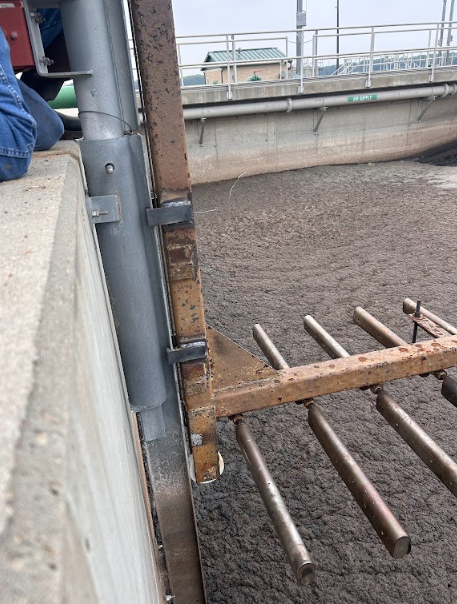

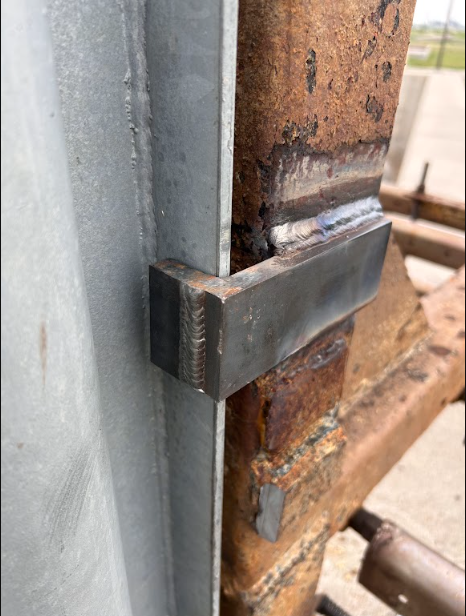

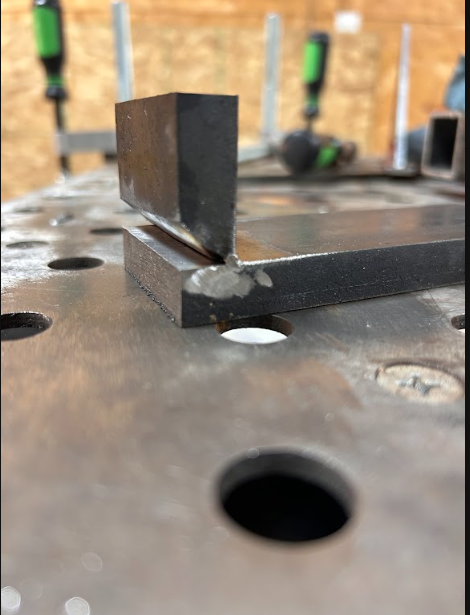

Bar screen rake arm and tine assembly repaired in place above the channel at a waste water treatment plant.The welding truck set up beside the treatment building, with power, gas and consumables carried to the job.New steel bracket welded to the galvanised guide rail, joining clean prepped steel to weathered plant structure.Replacement bracket assembly built up on the bench before installation, showing the finished fillet welds.Joint fit-up and tack welding on the fixture table ahead of the final passes.

Table base

Custom steel table base drawn in CAD, cut and welded in the shop, then finished in matte black with levelling feet fitted.

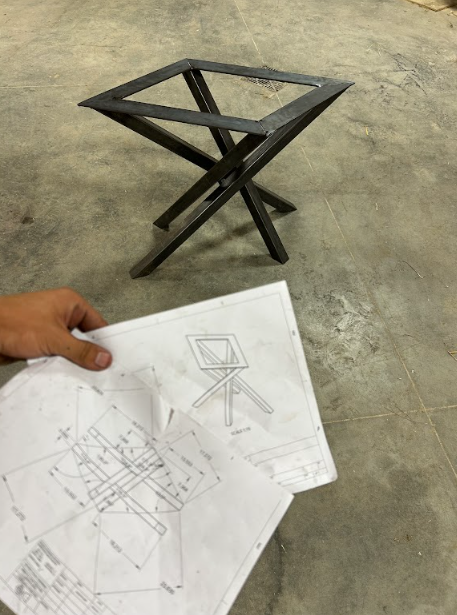

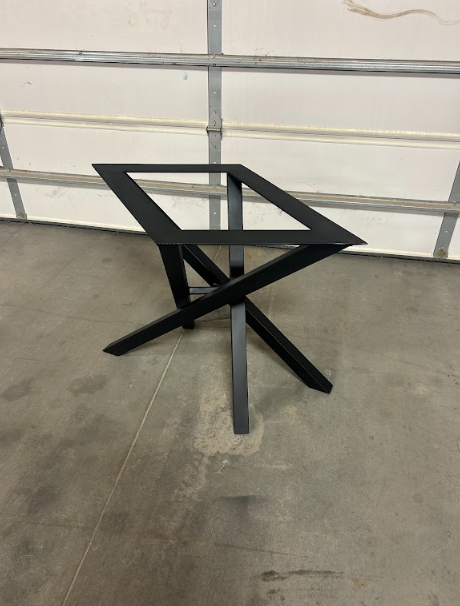

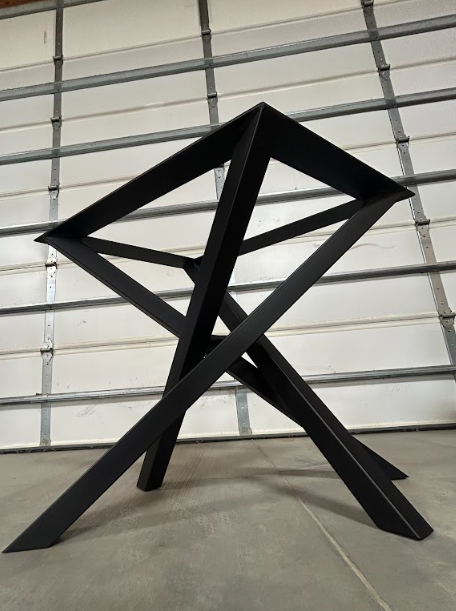

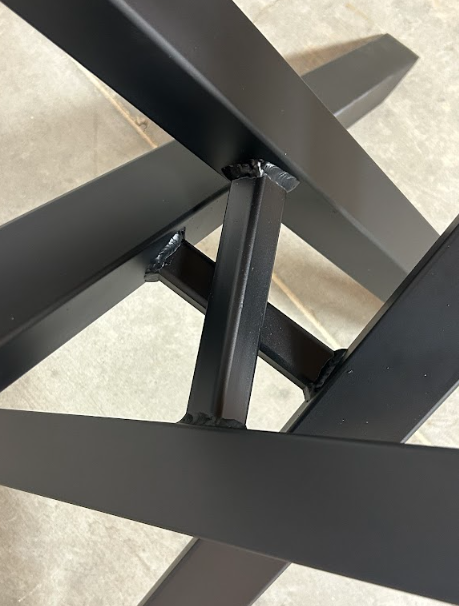

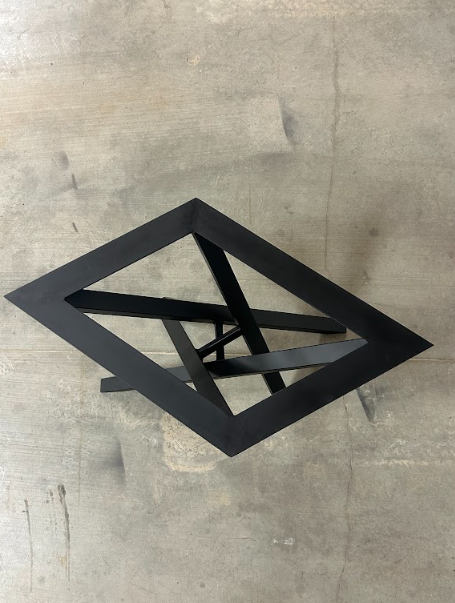

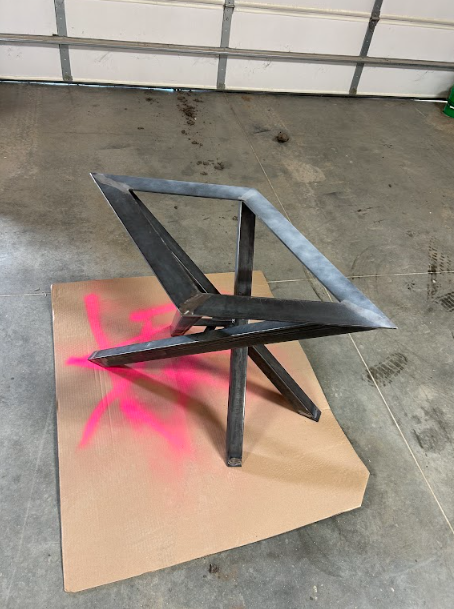

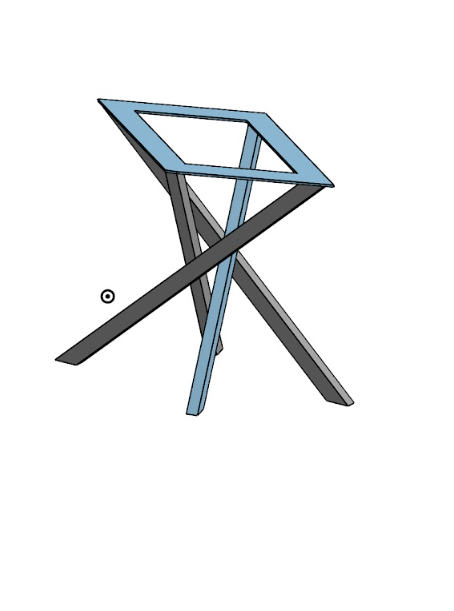

Finished steel table base in matte black, welds dressed smooth before coating.Close-up of the centre crossing joint where the legs and stretcher meet.Looking down on the top frame and cross bracing of the coated table base.The coated base standing square on its four feet, ready for a top to be fitted.The completed weldment in bare steel, marked up ahead of finishing and coating.Levelling foot fitted inside the leg so the table sits flat on an uneven floor.The fabricated base checked against the dimensioned shop drawings.CAD model used to set the angles and cut lengths before any steel was cut.

Custom fabrication

Frames, racks and tube assemblies built from drawings — cut, fitted and welded to suit the job.

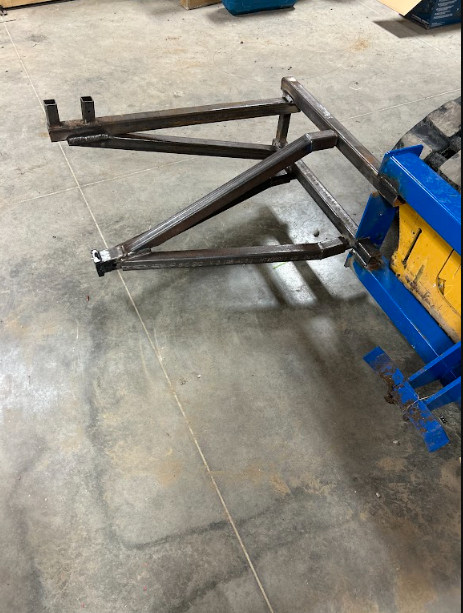

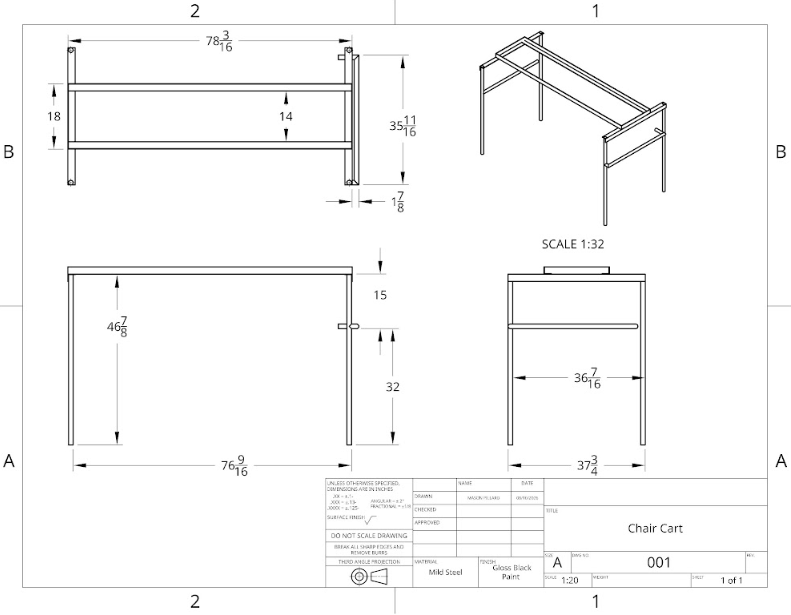

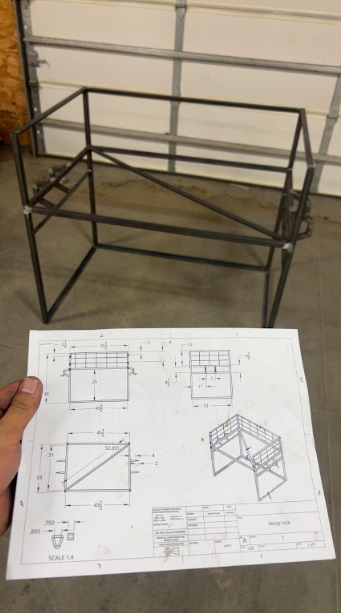

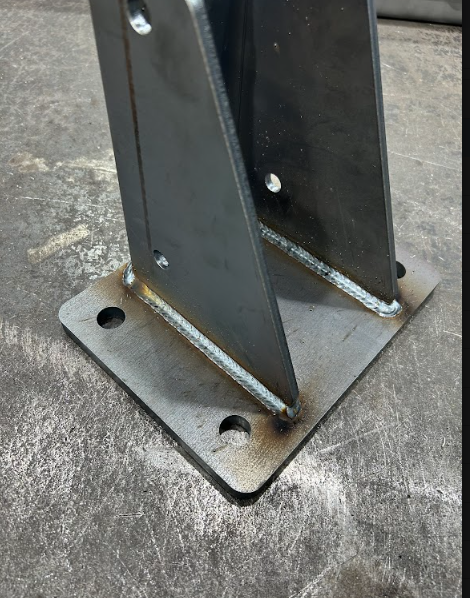

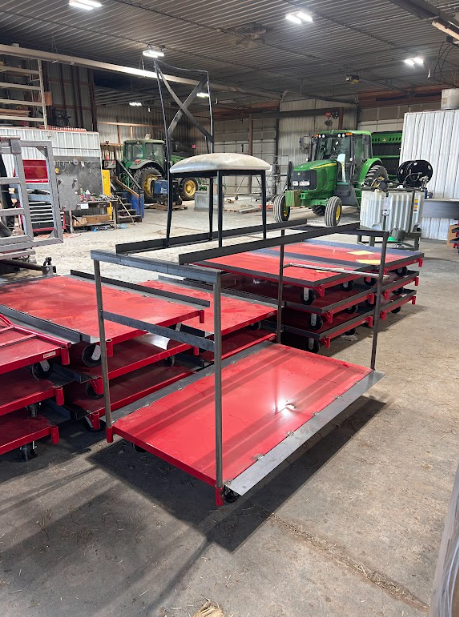

Close-up of a welded gusset where an angled brace meets the base of a steel frame.Two welded tube assemblies laid out on the bench beside the drawings they were built from.Welded rack frame held up against its dimensioned shop drawing outside the shop door.Steel racks fabricated to hold painted panels clear of the floor in a working shop.Welded lift arm frame built from square tube, ready to be fitted to the machine.Post welded to a drilled base plate, fillet welds run out clean on both sides.Tube cargo rack built for the bed of a side-by-side, out in the field in use.Dimensioned CAD drawing for a mild steel chair cart, drawn before any steel was cut.

Repairs and equipment

Repairs to trailers, implements, machinery brackets and access hatches, carried out on site or on the bench.

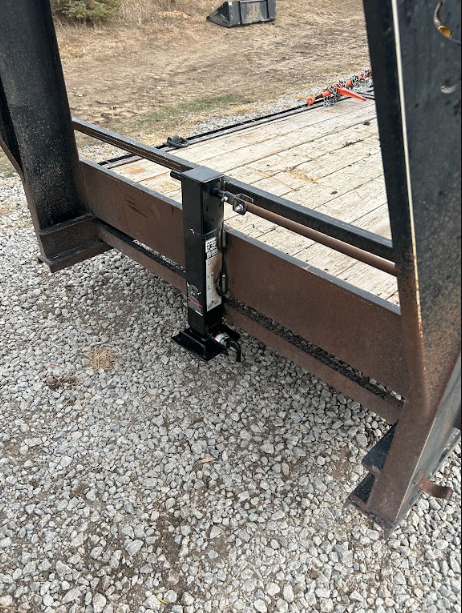

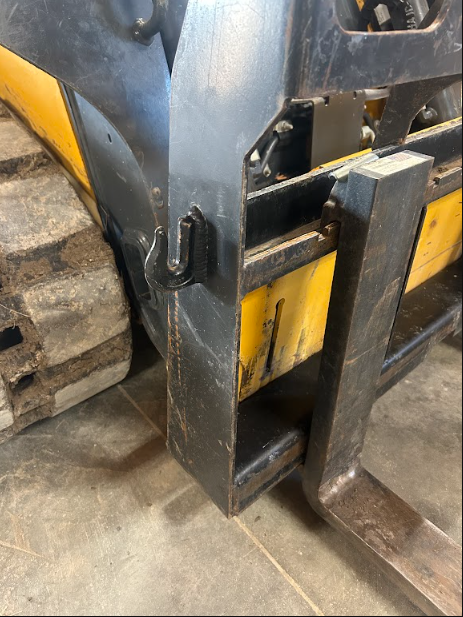

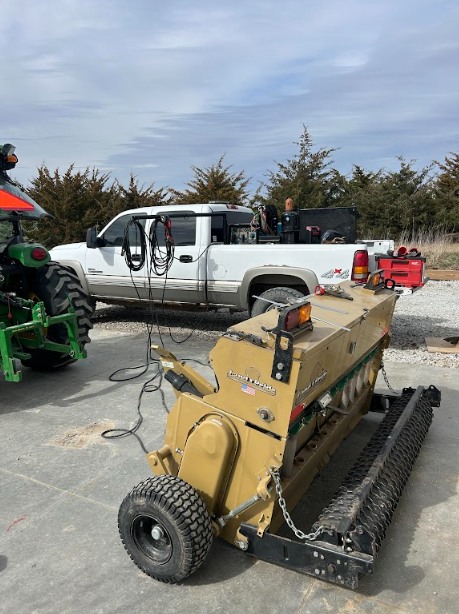

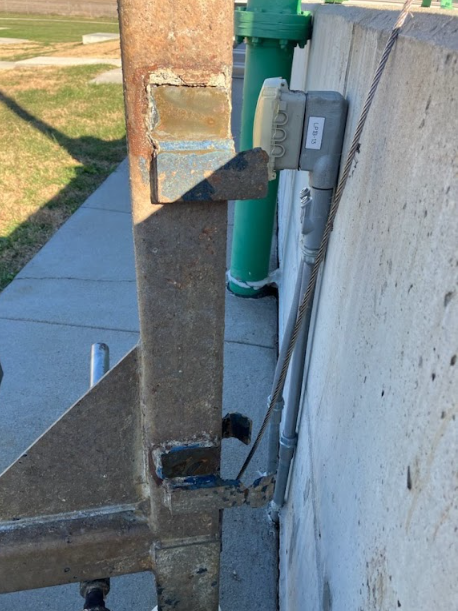

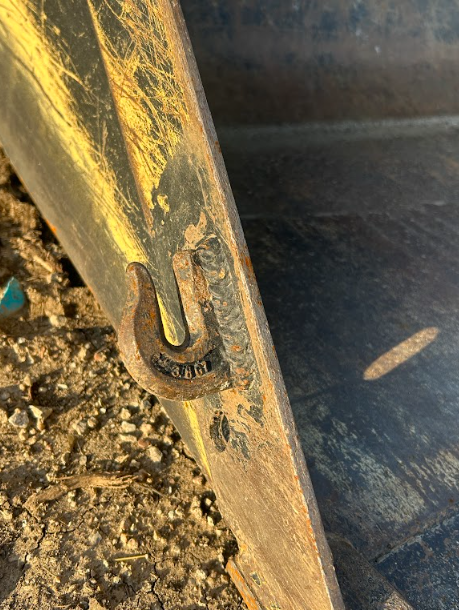

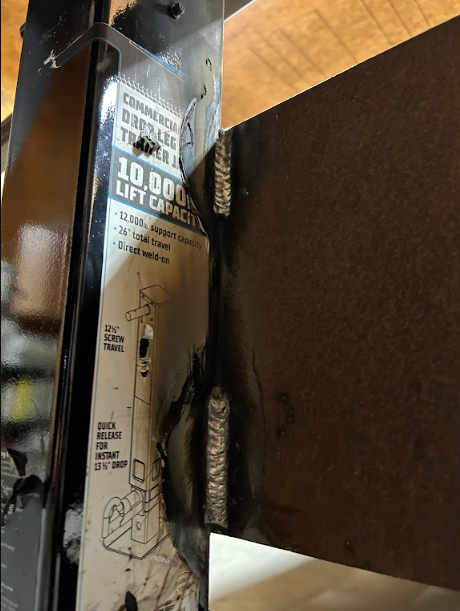

Mesh trailer ramp gate with its steel frame and hinges repaired and refitted.Agricultural implement repaired on site, with the welding truck and leads set up alongside it.Rusted diamond plate access hatch and frame set in concrete, assessed for repair.New pivot sleeve welded into the bracket on a piece of machinery, bead left as welded.Fork carriage and attachment plate welded and fitted to a skid steer loader.Rated lifting hook welded onto the edge of a loader bucket.Cracked push frame on a box blade rewelded and reinforced out in the yard.Drop-leg jack welded to the trailer frame and tested through its travel.Close-up of the vertical fillet welds holding the weld-on trailer jack to the frame.Steel brackets welded to a gate frame against a concrete wall, welded in place on site.

On-site work

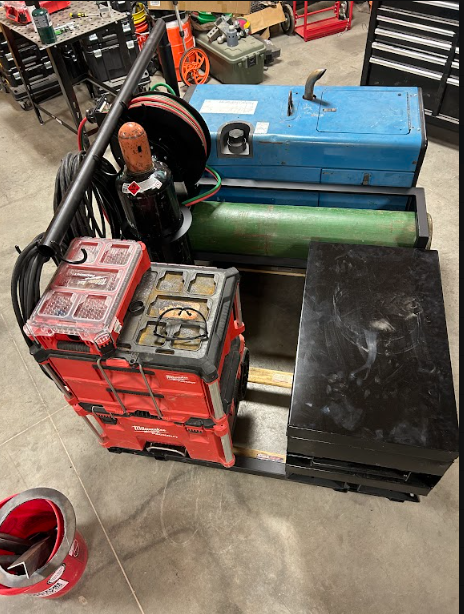

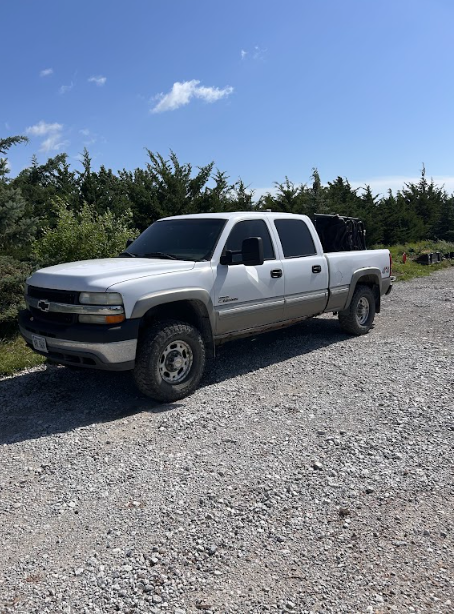

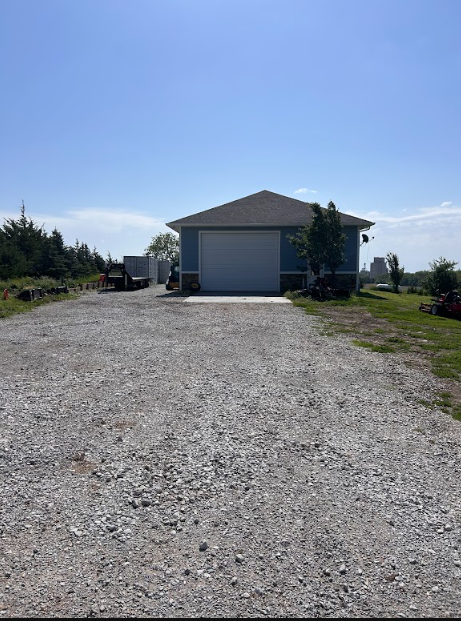

The welding truck loaded and ready to travel out to a job site.The shop where bench fabrication and CAD work is done between on-site calls.Truck loaded with racks, bottles and tooling before heading out to a call.Leads run out under the lot lights for an evening repair away from the shop.Cart of bottles, torch, leads and tool cases that travels with the truck.

Core welding processes

Heat-tinted TIG bead joining a drilled mounting tab to a square tube arm.

Had work done and happy with it? Photos of completed jobs are always welcome — and with your permission they will be credited and added here.

Want your project built next?

Send a photo of the part, your location and whether it is an emergency. You will get a straight answer on approach, timing and cost.
